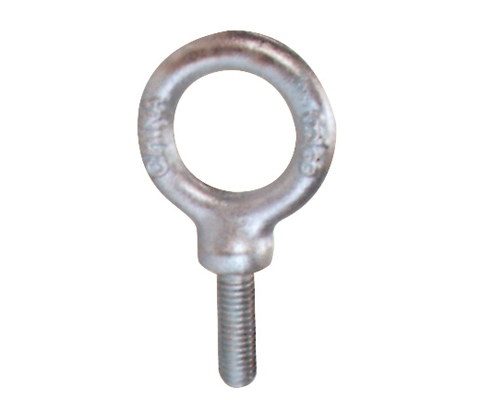

Product Name：Shoulder Type Machinery Eye Bolt S.C.Or H.D.G.Forged Carbon
|
SIZE inch |
W.L.L. lbs |
THREAD LGENGTH inch |
I.D.OF EYE inch |
N.W. lbs/100pcs |
| 1/4×1 | 650 | 1.00 | 0.88 | 3.20 |
| 5/16×1-1/8 | 1200 | 1.13 | 1.12 | 6.20 |
| 3/8×1-1/4 | 1550 | 1.25 | 1.38 | 12.50 |
| 1/2×1-1/2 | 2600 | 1.50 | 1.75 | 25.00 |
| 5/8×1-3/4 | 5200 | 1.75 | 2.25 | 50.00 |
| 3/4×2 | 7200 | 2.00 | 2.75 | 87.50 |
| 7/8×2-1/4 | 10600 | 2.25 | 3.25 | 150.00 |
| 1×2-1/2 | 13300 | 2.50 | 3.75 | 218.00 |
| 1-1/4×3 | 21000 | 3.00 | 4.50 | 380.00 |
| 1-1/2×3-1/2 | 24000 | 3.50 | 5.50 | 700.00 |
