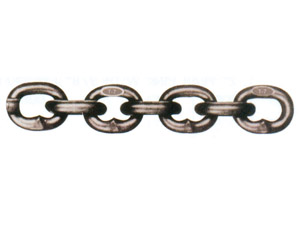

Product Name：Transport Chain ASTM 1980 (G70)
| Size | Material Diameter | Working Load Limit | Proof Test | Breaking Force Minium | Max Length per 100 Links | Max Weight Per 100 Feet | ||||||
| inch | inch | mm | lbs | kg | lbs | kn | lbs | kn | inch | m | lbs | kg |
| 1/4" | 0.281 | 7.1 | 3150 | 1430 | 6300 | 28 | 12600 | 56.1 | 98 | 2.49 | 84 | 38 |
| 5/16" | 0.343 | 8.7 | 4700 | 2130 | 9400 | 41.8 | 18800 | 83.6 | 110 | 2.79 | 120 | 54 |
| 3/8" | 0.406 | 10.3 | 6600 | 3000 | 13200 | 58.7 | 26400 | 117.4 | 134 | 3.4 | 176 | 80 |
| 1/2" | 0.531 | 13.5 | 11300 | 5130 | 22600 | 100.5 | 45200 | 201.1 | 160 | 4.06 | 300 | 136 |
