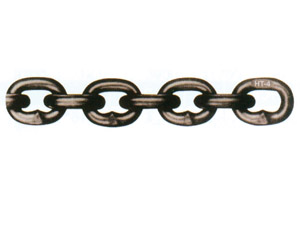

Product Name：High Test Chain NACM1990 (G43)
| Size | Material Diameter | Working Load Limit(Max) | Proof Test(Min) | Breaking Force Minium | Inside Length (Max) | Inside Width (Min) | |||||||
| mm | inch | mm | inch | kg | lbs | kn | lbs | kn | lbs | mm | inch | mm | inch |
| 7 | 1/4" | 7 | 0.276 | 1180 | 2600 | 16.6 | 3750 | 33.1 | 7500 | 31.5 | 1.24 | 9.8 | 0.38 |
| 8 | 5/16" | 8 | 0.315 | 1770 | 3900 | 21.6 | 4900 | 43.2 | 9700 | 32.8 | 1.29 | 11.2 | 0.44 |
| 10 | 3/8" | 10 | 0.394 | 2450 | 5400 | 33.8 | 7600 | 67.6 | 15200 | 35 | 1.38 | 14 | 0.55 |
| 13 | 1/2" | 13 | 0.512 | 4170 | 9200 | 57.1 | 12900 | 114.2 | 25700 | 45.5 | 1.79 | 18.2 | 0.72 |
| 16 | 5/8" | 16 | 0.63 | 5220 | 11500 | 86.5 | 19500 | 172.9 | 38900 | 56 | 2.2 | 20 | 0.79 |
| 20 | 3/4" | 20 | 0.787 | 7350 | 16200 | 130.1 | 30400 | 270.2 | 60700 | 70 | 2.76 | 25 | 0.98 |
