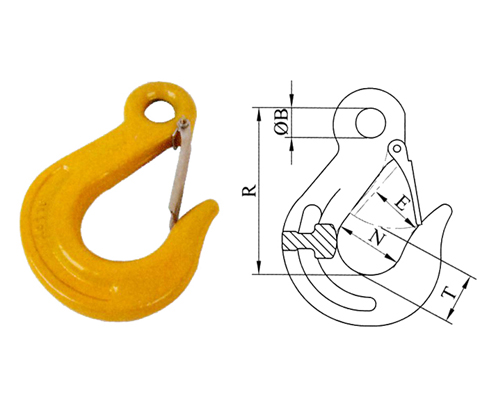

Product Name：G80 Eye Sling Hooks With Latches
|
SIZE (inch) |
DIMENSIONS(mm) |
W.L.L. (lbs.) |
WEIGHT (kgs) |
||||
| B | E | N | R | T | |||
| 1/4 | 14.3 | 32.0 | 44.4 | 94.5 | 26.0 | 3500 | 0.40 |
| 3/8 | 19.1 | 41.5 | 56.8 | 120.3 | 32.0 | 7100 | 0.87 |
| 1/2 | 23.8 | 5.0 | 63.6 | 143.7 | 39.5 | 12000 | 1.75 |
| 5/8 | 28.6 | 53.5 | 67.0 | 167.5 | 52.0 | 18100 | 3.75 |
