RIZHAO SUNLIGHT INDUSTRIAL CO.,LTD
Safety and Quality First Customers and Reputation Foremost

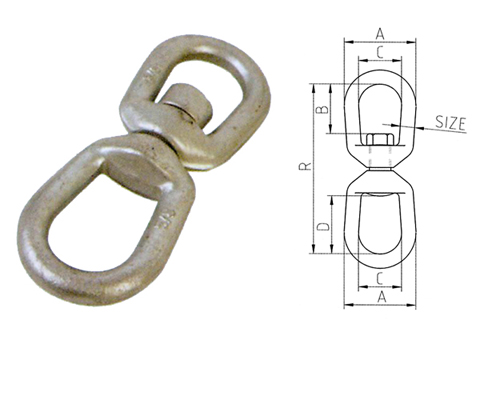

Product Name：Chain Swivel (G-401)Hot Dip Galvanized
|
CHAIN SIZE (inch.) |
DIMENSIONS(inch.) |
W.L.L. (lbs.) |
WEIGHT (kgs) |
||||
| B | C | D | G | T | |||
| 1/4 | 0.69 | 0.75 | 0.62 | 0.25 | 3.00 | 850 | 0.06 |
| 5/16 | 0.81 | 1.00 | 0.72 | 0.31 | 3.59 | 1250 | 0.12 |
| 3/8 | 0.94 | 1.25 | 1.00 | 0.38 | 4.44 | 2500 | 0.25 |
| 1/2 | 1.31 | 1.50 | 1.25 | 0.50 | 5.69 | 3600 | 0.51 |
| 5/8 | 1.56 | 1.75 | 1.50 | 0.62 | 6.89 | 5200 | 0.95 |
| 3/4 | 1.75 | 2.00 | 1.75 | 0.75 | 7.84 | 7200 | 1.45 |
| 7/8 | 2.06 | 2.25 | 2.00 | 0.87 | 9.02 | 10000 | 2.30 |
| 1 | 2.31 | 2.50 | 2.25 | 1.00 | 10.24 | 12500 | 3.61 |
| 1-1/8 | 2.33 | 2.75 | 2.50 | 1.13 | 11.25 | 16500 | 5.45 |
| 1-1/4 | 2.66 | 3.13 | 2.75 | 1.25 | 12.15 | 18000 | 7.00 |
| 1-1/2 | 4.40 | 4.00 | 3.00 | 1.50 | 16.38 | 45200 | 15.04 |
