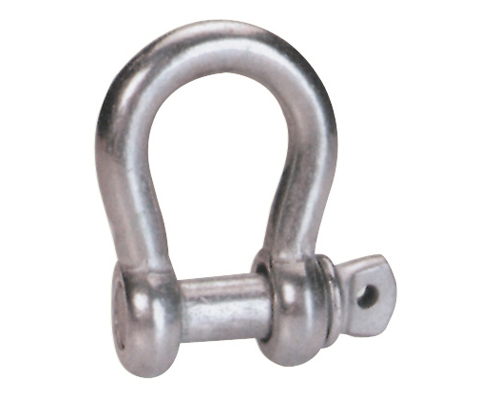

Product Name：Commercial Grade Screw Pin Anchor Shackle U.S.Type
| SIZE | W.L.L. | PIN DIA. | I.L. | N.W. |
| inch | ton | inch | inch | lbs |
| 3/16 | 1/4 | 1/4 | 7/8 | 0.05 |
| 1/4 | 1/3 | 5/16 | 1-1/8 | 0.12 |
| 5/16 | 1/2 | 3/8 | 1-7/32 | 0.19 |
| 3/8 | 3/4 | 7/16 | 1-7/16 | 0.31 |
| 7/16 | 1 | 1/2 | 1-11/16 | 0.38 |
| 1/2 | 1-1/2 | 5/8 | 1-7/8 | 0.63 |
| 5/8 | 2-1/4 | 3/4 | 2-3/8 | 1.38 |
| 3/4 | 3-1/4 | 7/8 | 2-13/16 | 2.25 |
| 7/8 | 4-1/4 | 1 | 3-5/16 | 3.38 |
| 1 | 5-1/2 | 1-1/8 | 3-3/4 | 5.32 |
