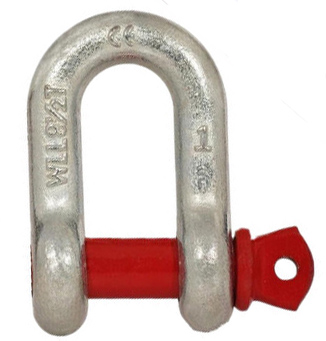

Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271D
Type IVB,Grade A,Class 2,except for those provisions required of the contractor.

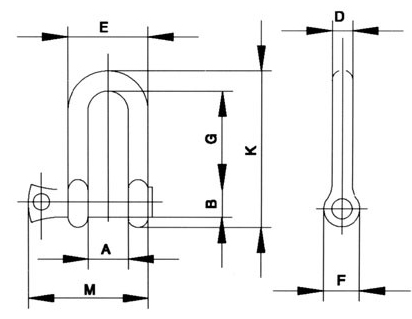

Nominal Size (in.)	Working Load Limit (t)	Stock No.		Weight Each	Dimensions (in.)										Tolerance +/-
		G-210	S-210	(lbs)	A	B	C	D	E	F	G	K	L	M	G	A
1/4	1/2	1019150	1019169	0.11	0.47	0.31	0.25	0.25	0.97	0.62	0.97	1.59	0.19	1.43	0.06	0.06
5/16	3/4	1019178	1019187	0.17	0.53	0.38	0.31	0.31	1.15	0.75	1.07	1.91	0.22	1.71	0.06	0.06
3/8	1	1019196	1019203	0.28	0.66	0.44	0.38	0.38	1.42	0.92	1.28	2.31	0.25	2.02	0.13	0.06
7/16	1-1/2	1019212	1019221	0.43	0.75	0.50	0.44	0.44	1.63	1.06	1.48	2.67	0.31	2.37	0.13	0.06
1/2	2	1019230	1019249	0.59	0.81	0.63	0.50	0.50	1.81	1.18	1.66	3.03	0.38	2.69	0.13	0.06
5/8	3-1/4	1019258	1019267	1.25	1.06	0.75	0.63	0.63	2.32	1.50	2.04	3.76	0.44	3.34	0.13	0.06
3/4	4-3/4	1019276	1019285	2.63	1.25	0.88	0.81	0.75	2.75	1.81	2.40	4.53	0.50	3.97	0.25	0.06
7/8	6-1/2	1019294	1019301	3.16	1.44	1.00	0.97	0.88	3.20	2.10	2.86	5.33	0.50	4.50	0.25	0.06
1	8-1/2	1019310	1019329	4.75	1.69	1.13	1.00	1.00	3.69	2.38	3.24	5.94	0.56	5.13	0.25	0.06
1-1/8	9-1/2	1019338	1019347	6.75	1.81	1.25	1.25	1.13	4.07	2.69	3.61	6.78	0.63	5.71	0.25	0.06
1/1/4	12	1019356	1019365	9.06	2.03	1.38	1.38	1.25	4.53	3.00	3.97	7.50	0.69	6.25	0.25	0.13
1-3/8	13-1/2	1019374	1019383	11.63	2.25	1.50	1.50	1.38	5.01	3.31	4.43	8.28	0.75	6.83	0.25	0.13
1-1/2	17	1019392	1019409	15.95	2.38	1.63	1.62	1.50	5.38	3.62	4.84	9.05	0.81	7.33	0.25	0.13
1-3/4	25	1019418	1019427	26.75	2.88	2.00	2.12	1.75	6.38	4.19	5.78	10.97	1.00	9.06	0.25	0.13
2	35	1019436	1019445	42.31	3.25	2.25	2.36	2.10	7.25	5.00	6.77	12.74	1.13	10.35	0.25	0.13
2-1/2	55	1019454	1019463	71.75	4.12	2.75	2.63	2.63	9.38	5.68	8.07	14.85	1.38	13.00	0.25	0.25

NOTE:Maximum Proof load is 2.0 times the Working Load Limit.Minimum Ultimate Strength is 6 times the
Working Load Limit.For Working Load Limit reduction due to side loading applications,see page 74.
﹒Capacities 1/3 thru 55 metric tons.
﹒Forged-Quenched and Tempered ,with alloy pins.
﹒Working Load Limit permanently shown on every shackle.
﹒Hot Dip galvanized or Self Colored.
﹒Fatigue rated.
﹒Shackles 25t and larger are RFID EQUIPPED.
﹒Shackles can be furnished proof tested with certificates to designated standards,such as ABS,DNV,Lloyds,or other certification.Charges for proof testing and certification available when requested at the time of order.
﹒Shackles are Quenched and Tempered and can meet DNV impact requirements of 42 joules at -20 degree C.
