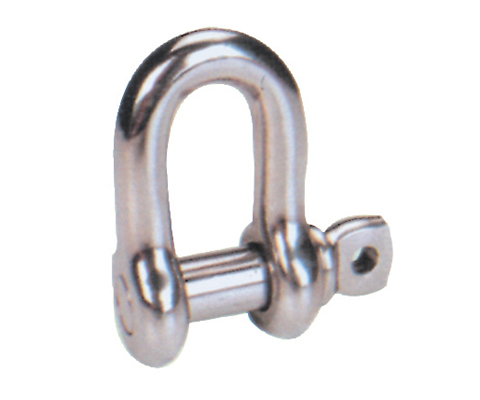

Product Name：Stainless Steel Screw Pin Chain Shackle U.S. Type A.I.S.I.
| SIZE | W.L.L. | PIN. DIA. | I.L. | N.W. |
| inch | lbs | inch | inch | kg |
| 3/16 | 300 | 1/4 | 3/4 | 0.017 |
| 1/4 | 450 | 5/16 | 7/8 | 0.030 |
| 5/16 | 650 | 3/8 | 1-1/32 | 0.065 |
| 3/8 | 1000 | 7/16 | 1-1/4 | 0.125 |
| 7/16 | 1450 | 1/2 | 1-7/16 | 0.184 |
| 1/2 | 1990 | 5/8 | 1-5/8 | 0.230 |
| 5/8 | 3050 | 3/4 | 2 | 0.510 |
| 3/4 | 4475 | 7/8 | 2-3/8 | 0.930 |
| 7/8 | 6000 | 1 | 2-13/16 | 1.270 |
| 1 | 7950 | 1-1/8 | 3-3/16 | 1.870 |
| 1-1/8 | 10500 | 1-1/4 | 3-9/16 | 2.950 |
| 1-1/4 | 13600 | 1-3/8 | 3-15/16 | 4.000 |
