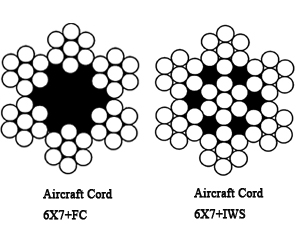

Product Name：Aircraft Cord
| Diameter(mm) | Nominal Tensile Strength of Wire(Mpa) | Fibre Core-The Minimun Breaking Load of Rope(kN) | Steel Core-The Minimun Breaking Load of Rope(kN) | Fibre Core Approx.Weight of Rope (kg/100m) | Steel Core Approx.Weight of Rope (kg/100m) | |
| Rope | Wire | |||||
| 1.58 | 0.17 | 1870 | 1.57 | 1.83 | 1.01 | 1.09 |
| 1.70 | 0.19 | 1870 | 1.95 | 2.23 | 1.26 | 1.37 |
| 1.80 | 0.20 | 1870 | 2.28 | 2.50 | 1.40 | 1.50 |
| 2.15 | 0.24 | 1870 | 3.28 | 3.60 | 2.00 | 2.20 |
| 2.50 | 0.28 | 1870 | 4.47 | 5.00 | 2.70 | 3.00 |
| 3.50 | 0.34 | 1870 | 6.23 | 7.32 | 4.00 | 4.40 |
| 3.60 | 0.40 | 1870 | 8.7 | 10.10 | 5.50 | 6.20 |
| 4.10 | 0.45 | 1770 | 10.4 | 13.20 | 7.00 | 7.95 |
| 4.50 | 0.50 | 1770 | 12.8 | 15.00 | 8.70 | 9.60 |
| 5.40 | 0.60 | 1670 | 17.5 | 20.40 | 12.50 | 13.80 |
