RIZHAO SUNLIGHT INDUSTRIAL CO.,LTD
Safety and Quality First Customers and Reputation Foremost

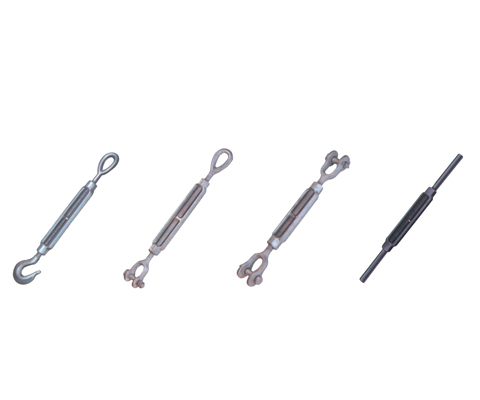

Product Name：Turbuckles U.S. Type,Drop Forged
| SIZE(inch) | APPROX WEIGHT EACH(lbs) | W.L.L.(lbs) | |||||
| (Dia.×Take-up) |
Eyes&/or Hooks |
Jaw&Eye | Jaw&Jaw | Stub End | Body only | H&H H&E |
E&E J&E J&J STUB END |
| 1/4＂×4＂ | 0.30 | 0.30 | 0.40 | 0.29 | 0.17 | 400 | 500 |
| 5/16＂×4＂-1/2＂ | 0.50 | 0.53 | 0.58 | 0.46 | 0.25 | 700 | 800 |
| 3/8＂×6＂ | 0.75 | 0.82 | 0.93 | 0.75 | 0.30 | 100 | 1200 |
| 1/2＂×6＂ | 1.50 | 1.62 | 1.68 | 1.36 | 0.55 | 1500 | 2200 |
| 1/2＂×9＂ | 1.75 | 1.82 | 1.85 | 1.69 | 0.74 | 1500 | 2200 |
| 1/2＂×12＂ | 2.18 | 2.19 | 2.20 | 2.00 | 0.93 | 1500 | 2200 |
| 5/8＂×6＂ | 2.63 | 2.59 | 2.82 | 2.15 | 0.91 | 2250 | 3500 |
| 5/8＂×9＂ | 3.00 | 3.01 | 3.25 | 2.70 | 1.20 | 2250 | 3500 |
| 5/8＂×12＂ | 3.25 | 3.50 | 3.75 | 3.22 | 1.50 | 2250 | 3500 |
| 3/4＂×6＂ | 3.75 | 4.25 | 4.68 | 3.25 | 1.30 | 3000 | 5200 |
| 3/4＂×9＂ | 4.50 | 5.00 | 5.38 | 4.00 | 1.70 | 3000 | 5200 |
| 3/4＂×12＂ | 5.75 | 5.75 | 6.12 | 4.65 | 2.12 | 3000 | 5200 |
| 3/4＂×18＂ | 7.00 | 7.25 | 7.25 | 6.12 | 2.93 | 3000 | 5200 |
| 7/8＂×6＂ | 5.85 | 6.29 | 6.84 | 4.75 | 2.00 | 4000 | 7200 |
| 7/8＂×12＂ | 8.38 | 8.88 | 9.36 | 6.67 | 3.00 | 4000 | 7200 |
| 7/8＂×18＂ | 10.25 | 10.60 | 11.44 | 8.75 | 4.12 | 4000 | 7200 |
| 1＂×6＂ | 8.76 | 9.16 | 9.51 | 6.41 | 2.50 | 5000 | 10000 |
| 1＂×12＂ | 11.25 | 12.00 | 12.88 | 8.90 | 3.86 | 5000 | 10000 |
| 1＂×18＂ | 14.00 | 14.75 | 16.10 | 11.70 | 5.50 | 5000 | 10000 |
| 1＂×24＂ | 17.00 | 17.75 | 18.60 | 14.30 | 7.00 | 5000 | 10000 |
| 1-1/4＂×6＂ | 15.45 | 16.03 | 16.69 | 10.40 | 4.00 | 6500 | 15200 |
| 1-1/4＂×12＂ | 19.00 | 21.20 | 23.60 | 14.20 | 5.93 | 6500 | 15200 |
| 1-1/4＂×18＂ | 24.10 | 26.00 | 26.60 | 18.00 | 8.00 | 6500 | 15200 |
| 1-1/4＂×24＂ | 25.00 | 28.70 | 31.20 | 21.80 | 10.00 | 6500 | 15200 |
| 1-1/2＂×6＂ | --- | --- | --- | 15.40 | 5.80 | 7500 | 21400 |
| 1-1/2＂×12＂ | 27.00 | 31.10 | 35.50 | 20.50 | 8.40 | 7500 | 21400 |
| 1-1/2＂×18＂ | 31.20 | 36.40 | 40.70 | 26.20 | 11.50 | 7500 | 21400 |
| 1-1/2＂×24＂ | 38.20 | 44.20 | 47.60 | 31.40 | 14.10 | 7500 | 21400 |
| 1-3/4＂×6＂ | --- | --- | --- | 22.70 | 8.75 | --- | 28000 |
| 1-3/4＂×18＂ | 45.20 | 48.80 | 52.40 | --- | --- | --- | 28000 |
| 1-3/4＂×24＂ | 58.00 | 60.00 | 64.00 | 43.90 | 19.50 | --- | 28000 |
| 2＂×6＂ | --- | --- | --- | 31.50 | 12.50 | --- | 37000 |
| 2＂×24＂ | 90.00 | 102.00 | 115.00 | 60.30 | 27.50 | --- | 37000 |
| 2-1/2＂×6＂ | --- | --- | --- | 60.80 | 27.00 | --- | 60000 |
| 2-1/2＂×24＂ | 180.00 | 183.00 | 200.00 | 110.00 | 54.00 | --- | 60000 |
| 2-3/4＂×24＂ | 210.00 | 214.00 | 248.00 | --- | 67.00 | --- | 75000 |
