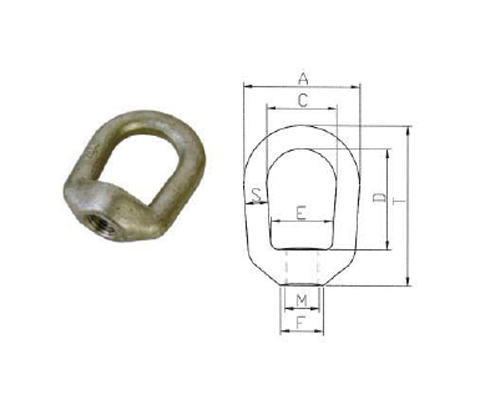

Product Name：G400 US type oval eye nut
|
STD.TAP SIZE M |
DIMENSIONS(in.) |
MAX. TAP SIZE POSSIBLE |
W.L.L. (lbs) |
WEIGHT (lbs) |
||||||
| A | C | D | E | F | S | T | ||||
| 1/4 | 1-1/4 | 3/4 | 1-1/16 | 21/32 | 1/2 | 1/4 | 1-11/16 | 3/8 | 520 | 0.09 |
| 5/16 | 1-1/4 | 3/4 | 1-1/16 | 21/32 | 1/2 | 1/4 | 1-11/16 | 3/8 | 850 | 0.09 |
| 3/8 | 1-5/8 | 1 | 1-1/4 | 3/4 | 9/16 | 5/16 | 2-1/16 | 7/16 | 1250 | 0.18 |
| 7/16 | 2 | 1-1/4 | 1-1/2 | 1 | 13/16 | 3/8 | 2-1/2 | 1/2 | 1700 | 0.29 |
| 1/2 | 2 | 1-1/4 | 1-1/2 | 1 | 13/16 | 3/8 | 2-1/2 | 2250 | 0.29 | |
| 5/8 | 2-1/2 | 1-1/2 | 2 | 1-3/16 | 1 | 1/2 | 3-3/16 | 3/4 | 3600 | 0.58 |
| 3/4 | 3 | 1-3/4 | 2-3/8 | 1-3/8 | 1-1/8 | 5/8 | 3-7/8 | 7/8 | 5200 | 1.00 |
| 7/8 | 3-1/2 | 2 | 2-5/8 | 1-5/8 | 1-5/16 | 3/4 | 4-5/16 | 1 | 7200 | 1.70 |
| 1 | 4 | 2-1/4 | 3-1/16 | 1-7/8 | 1-9/16 | 7/8 | 5 | 1-1/4 | 10000 | 2.75 |
| 1-1/8 | 4 | 2-1/4 | 3-1/16 | 1-7/8 | 1-9/16 | 7/8 | 5 | 1-1/4 | 12300 | 2.75 |
| 1-1/4 | 4-1/2 | 2-1/2 | 3-1/2 | 1-15/16 | 1-7/8 | 1 | 5-3/4 | 1-1/2 | 15500 | 3.85 |
| 1-3/8 | 5 | 2-3/4 | 2-3/4 | 2 | 2 | 1-1/8 | 6-1/4 | 1-1/2 | 18500 | 5.00 |
| 1-1/2 | 5-5/8 | 3-1/8 | 4 | 2-3/8 | 2-1/4 | 1-1/4 | 6-3/4 | 1-3/4 | 22500 | 6.70 |
| 2 | 7 | 4 | 6-1/4 | 4 | 3-3/8 | 1-1/2 | 10 | 2-3/4 | 40000 | 18.70 |
