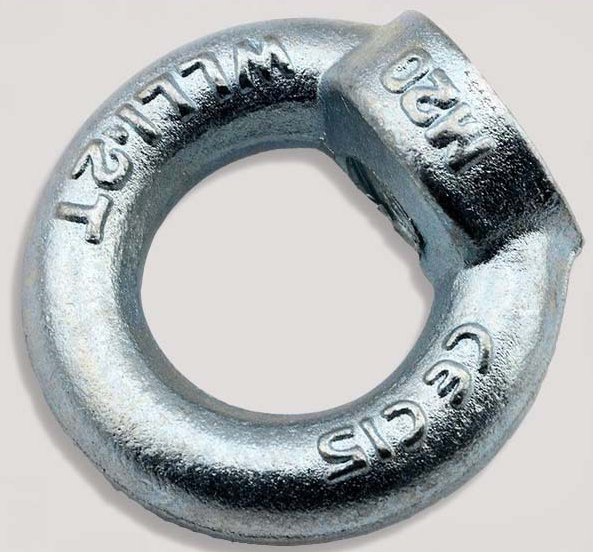

Product Name：DIN 582 Lifting Eye Nut

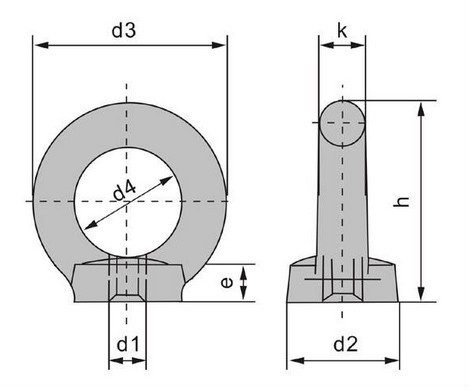

| Size | WLL | Dimensions (mm) | Weight | |||||
| d | (tons) | d2 | d3 | d4 | e | h | k | Kgs/100pcs |
| M6 | 0.08 | 20 | 36 | 20 | 8.5 | 31 | 8 | 4.9 |
| M8 | 0.14 | 20 | 36 | 20 | 8.5 | 36 | 8 | 5 |
| M10 | 0.23 | 25 | 45 | 25 | 10 | 45 | 10 | 9 |
| M12 | 0.34 | 30 | 54 | 30 | 11 | 53 | 12 | 16 |
| M14 | 0.49 | 35 | 63 | 35 | 13 | 62 | 14 | 24 |
| M16 | 0.7 | 35 | 63 | 35 | 13 | 62 | 14 | 24 |
| M18 | 0.95 | 40 | 72 | 40 | 16 | 71 | 16 | 36 |
| M20 | 1.2 | 40 | 72 | 40 | 16 | 71 | 16 | 36 |
| M22 | 1.5 | 45 | 81 | 45 | 18 | 80.5 | 18 | 58 |
| M24 | 1.8 | 50 | 90 | 50 | 20 | 90 | 20 | 72 |
| M27 | 2.5 | 50 | 90 | 50 | 20 | 90 | 20 | 70 |
| M30 | 3.6 | 65 | 108 | 60 | 25 | 109 | 24 | 132 |
| M33 | 4.3 | 65 | 108 | 60 | 25 | 109 | 24 | 130 |
| M36 | 5.1 | 75 | 126 | 70 | 30 | 128 | 28 | 208 |
| M39 | 6.1 | 75 | 126 | 70 | 30 | 147 | 28 | 202 |
| M42 | 7 | 85 | 144 | 80 | 35 | 147 | 32 | 311 |
| M45 | 8 | 85 | 144 | 80 | 35 | 168 | 32 | 304 |
| M48 | 8.6 | 100 | 166 | 90 | 40 | 168 | 38 | 502 |
| M52 | 9.9 | 100 | 166 | 90 | 40 | 187 | 38 | 495 |
| M56 | 11.5 | 110 | 184 | 100 | 45 | 187 | 42 | 669 |
| M64 | 16 | 120 | 206 | 110 | 50 | 208 | 48 | 930 |
| M72 | 21 | 150 | 260 | 140 | 60 | 260 | 60 | 1875 |
| M80 | 28 | 170 | 296 | 160 | 70 | 298 | 68 | 2730 |
| M100 | 38 | 190 | 330 | 180 | 75 | 330 | 75 | 3640 |
