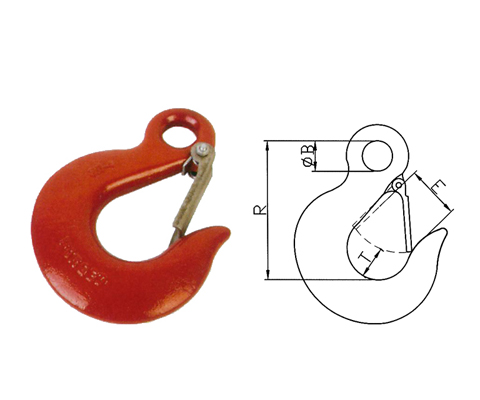

Product Name：Eye Slip Hooks With Latches
| CHAIN SIZE inch | W.L.L. | DIMENSIONS | N.W. lbs | ||||
| lbs | inch | ||||||
| H-324 | A-324 | B | E | P | T | ||
| 1/4 | 1,950 | 2,750 | 0.50 | 0.75 | 2.56 | 0.79 | 0.42 |
| 5/16 | 2,875 | 4,300 | 0.63 | 0.88 | 2.95 | 0.79 | 0.72 |
| 3/8 | 4,000 | 5,250 | 0.72 | 1.10 | 3.36 | 1.02 | 1.03 |
| 7/16 | 5,000 | 7,000 | 0.81 | 1.25 | 3.88 | 1.06 | 1.64 |
| 1/2 | 6,500 | 9,000 | 0.94 | 1.38 | 4.28 | 1.30 | 2.45 |
| 5/8 | 9,250 | 13,500 | 1.13 | 1.45 | 5.22 | 1.53 | 4.13 |
| 3/4 | 12,500 | 19,250 | 1.38 | 1.59 | 5.80 | 1.62 | 6.76 |
