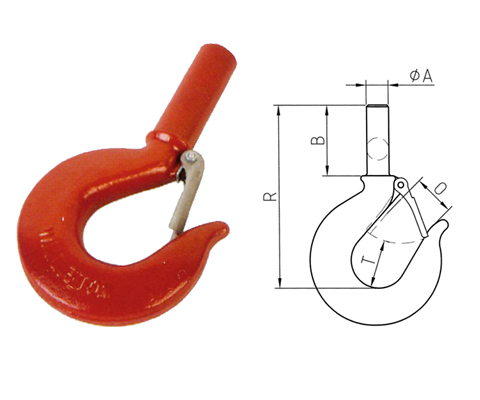

Product Name：Shank Hooks With Latches
| W.L.L. | DIMENSIONS | N.W. lbs | |||||
| lbs | inch | ||||||
| 319C | 319A | A | B | O | R | T | |
| 3/4 | 1 | 0.59 | 2.00 | 0.88 | 2.28 | 0.81 | 0.52 |
| 1 | 1-1/2 | 0.66 | 2.25 | 0.97 | 2.53 | 0.81 | 0.77 |
| 1-1/2 | 2 | 0.72 | 2.50 | 1.00 | 2.69 | 0.84 | 1.03 |
| 2 | 3 | 0.88 | 2.75 | 1.12 | 3.06 | 1.19 | 1.88 |
| 3 | 5 | 1.16 | 3.25 | 1.34 | 3.78 | 1.38 | 3.91 |
| 5 | 7 | 1.41 | 3.75 | 1.69 | 4.75 | 1.78 | 7.36 |
| 7-1/2 | 11 | 1.69 | 4.25 | 2.06 | 5.88 | 2.12 | 13.17 |
| 10 | 15 | 1.75 | 4.50 | 2.28 | 6.41 | 2.52 | 19.55 |
