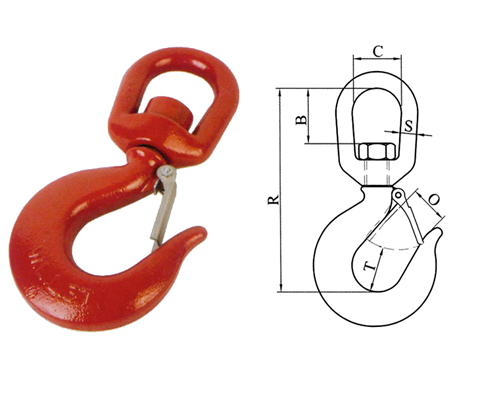

Product Name：Swivel Hooks With Latches
| W.L.L. | DIMENSIONS | N.W. lbs | ||||||
| lbs | inch | |||||||
| 322C | 322A | B | C | O | R | S | T | |
| 3/4 | 1 | 15/16 | 1-1/4 | 7/8 | 4-15/32 | 3/8 | 13/16 | 0.77 |
| 1 | 1-1/2 | 1-5/16 | 1-1/2 | 31/32 | 5-9/32 | 1/2 | 13/16 | 1.27 |
| 1-1/2 | 2 | 1-5/8 | 1-3/4 | 1 | 6-1/64 | 5/8 | 27/32 | 2.28 |
| 2 | 3 | 1-9/16 | 1-3/4 | 1-1/8 | 6-3/8 | 5/8 | 1-3/16 | 2.60 |
| 3 | 5 | 1-3/4 | 2 | 1-11/32 | 7-13/32 | 3/4 | 1-3/8 | 4.81 |
| 5 | 7 | 2-5/16 | 2-1/2 | 1-11/16 | 9-19/32 | 1 | 1-25/32 | 10.40 |
| 7-1/2 | 11 | 2-3/8 | 2-3/4 | 2-1/6 | 11-1/8 | 1-1/8 | 2-1/8 | 16.42 |
| 10 | 15 | 2-13/16 | 3-1/8 | 2-1/4 | 11-15/16 | 1-1/4 | 2-1/2 | 23.40 |
| 15 | 22 | 4 | 4 | 2-1/32 | 16-5/6 | 1-1/2 | 2-5/6 | 54.90 |
