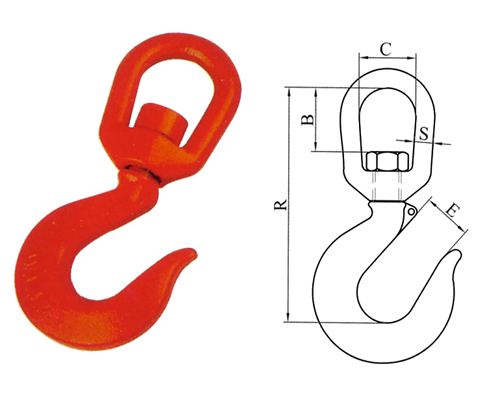

Product Name：Swivel Hooks
| W.L.L. | DIMENSIONS | N.W. lbs | |||||
| lbs | inch | ||||||
| 322C | 322A | B | C | E | R | S | |
| 3/4 | 1 | 15/16 | 1-1/4 | 15/16 | 4-15/32 | 3/8 | 0.75 |
| 1 | 1-1/2 | 1-5/16 | 1-1/2 | 1-1/32 | 5-9/32 | 1/2 | 1.25 |
| 1-1/2 | 2 | 1-5/8 | 1-3/4 | 1-1/16 | 6-1/64 | 5/8 | 2.25 |
| 2 | 3 | 1-9/16 | 1-3/4 | 1-7/32 | 6-3/8 | 5/8 | 2.57 |
| 3 | 5 | 1-3/4 | 2 | 1-1/2 | 7-13/32 | 3/4 | 4.75 |
| 5 | 7 | 2-5/16 | 2-1/2 | 1-7/8 | 9-19/32 | 1 | 10.29 |
| 7-1/2 | 11 | 2-3/8 | 2-3/4 | 2-1/4 | 11-1/8 | 1-1/8 | 16.25 |
| 10 | 15 | 2-13/16 | 3-1/8 | 2-1/2 | 11-15/16 | 1-1/4 | 23.25 |
| 15 | 22 | 4 | 4 | 3-2/5 | 16-5/6 | 1-1/2 | 54.20 |
