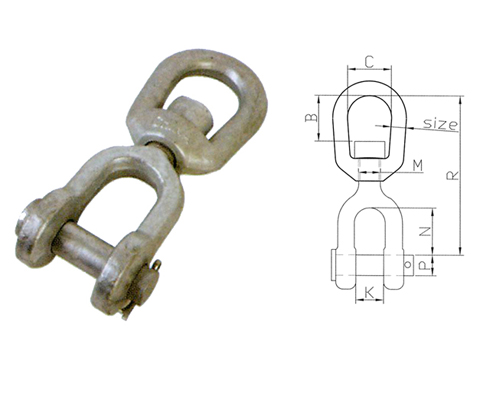

Product Name：Regular Swivel
|
SIZE (inch.) |
DIMENSIONS(inch.) |
W.L.L. (lbs.) |
WEIGHT (lbs.) |
|||||
| A | B | C | D | R | ||||
| 1/4 | 1-1/4 | 1-1/6 | 3/4 | 1-1/16 | 2-15/16 | 850 | 0.21 | |
| 5/16 | 1-5/8 | 13/16 | 1 | 1-1/4 | 3-9/16 | 1250 | 0.39 | |
| 3/8 | 2 | 15/16 | 1-1/4 | 1-1/2 | 4-5/16 | 2250 | 0.75 | |
| 1/2 | 2-1/2 | 1-5/16 | 1-1/2 | 2 | 5-7/16 | 3600 | 1.43 | |
| 5/8 | 3 | 1-9/16 | 1-3/4 | 2-3/8 | 6-9/16 | 5200 | 2.50 | |
| 3/4 | 3-1/2 | 1-3/4 | 2 | 2-5/8 | 7-3/16 | 7200 | 4.13 | |
| 7/8 | 4 | 2-1/16 | 2-1/4 | 3-1/16 | 8-3/8 | 10000 | 6.25 | |
| 1 | 4-1/2 | 2-5/16 | 2-1/2 | 3-1/2 | 9-5/8 | 12500 | 9.00 | |
| 1-1/8 | 5 | 2-3/8 | 2-3/4 | 3-3/4 | 7-7/32 | 16500 | 11.00 | |
| 1-1/4 | 5-5/8 | 2-11/16 | 3-1/8 | 2-11/16 | 11-1/8 | 18000 | 16.37 | |
| 1-1/2 | 7 | 4-3/16 | 4 | 4-3/16 | 17-1/8 | 45200 | 49.06 | |
