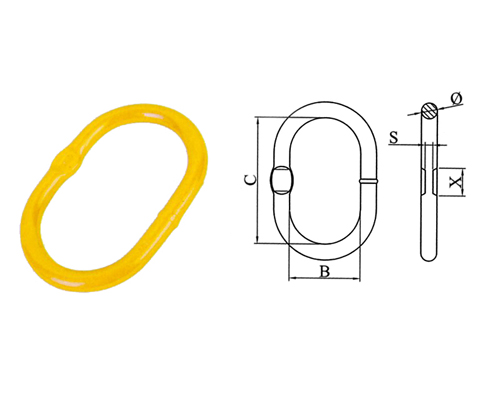

Product Name：G80 Welded Master li
|
SIZE (inch) |
DIMENSIONS(mm) |
W.L.L. (TONS) |
WEIGHT (kgs) |
||||
| B | C | Φ | S | X | |||
| 6-8 | 60 | 110 | 14 | 7 | 28 | 1.6 | 0.34 |
| 7-8 | 60 | 110 | 16 | 7 | 28 | 2.0 | 0.60 |
| 8-8 | 75 | 135 | 18 | 7 | 38 | 3.15 | 0.82 |
| 10-8 | 90 | 160 | 22 | 11 | 38 | 5.3 | 1.60 |
| 13-8 | 100 | 180 | 27 | 13 | 48 | 8.0 | 2.46 |
| 16-8 | 110 | 200 | 32 | 17 | 48 | 11.2 | 4.25 |
| 18-8 | 140 | 260 | 37 | 19 | 56 | 14.0 | 6.35 |
| 20-8 | 160 | 300 | 40 | 22 | 56 | 17.0 | 9.00 |
| 22-8 | 180 | 340 | 45 | 26 | 60 | 21.2 | 12.80 |
| 26-8 | 190 | 350 | 50 | 28 | 60 | 31.5 | 17.20 |
| 32-8 | 200 | 400 | 56 | 32 | 60 | 45.0 | 24.20 |
| 36-8 | 220 | 430 | 63 | 38 | 60 | 56.0 | 32.60 |
