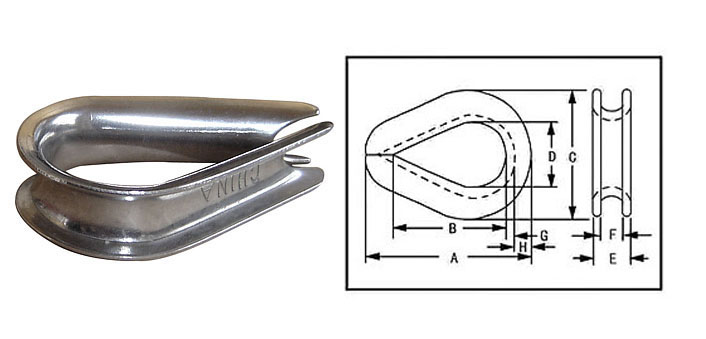

Standard Wire Rope Thimbles

G-411 meets the performance requirements of Federal Specification FF-T-276b
Type Ⅱ,except for those provisions required of the contractor.

·Hot Dip Galvanized steel.
·The standard choice for light duty applications and loading conditions.



ROPE DIA. (inch)	DIMENSIONS (inch)								WEIGHT Per 100 (lbs.)
	A	B	C	D	E	F	G	H
1/8	1.94	1.31	1.06	0.69	0.25	0.16	0.05	0.13	3.50
3/16	1.94	1.31	1.06	0.69	0.31	0.22	0.05	0.13	3.50
1/4	1.94	1.31	1.06	0.69	0.38	0.28	0.05	0.13	3.50
5/16	2.13	1.5	1.25	0.81	0.44	0.34	0.05	0.13	4.00
3/8	2.38	1.63	1.47	0.94	0.53	0.41	0.06	0.16	6.70
1/2	2.75	1.88	1.75	1.13	0.69	0.53	0.08	0.19	12.50
5/8	3.50	2.25	2.38	1.38	0.91	0.66	0.13	0.34	34.50
3/4	3.75	2.50	2.69	1.63	1.08	0.78	0.14	0.34	47.10
7/8	5.00	3.50	3.19	1.88	1.27	0.94	0.16	0.44	84.60
1	5.69	4.25	3.75	2.50	1.39	1.06	0.16	0.41	97.50
1-1/8-1-1/4	6.25	4.50	4.31	2.75	1.75	1.31	0.22	0.50	175.00
