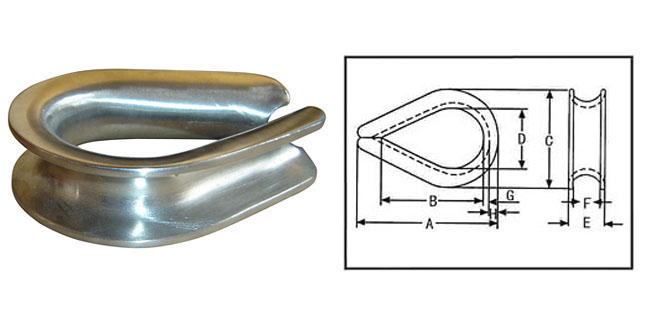

Extra Heavy Wire Rope Thimbles H.D.G.

G-414 meets the performance requirements of Federal Specification FF-T-276b
Type Ⅲ,except for those provisions required of the contractor.

·Available in Hot Dip galvanized or Stainless Steel(Type 304).
·Stainless steel recommended for more corrosive environments where greater protection is required.
·Greater protection against wear and deformation of the wire rope eye.
·Longer service life.



ROPE DIA. (inch)	DIMENSIONS (inch)								WEIGHT Per 100 (lbs.)
	A	B	C	D	E	F	G	H
*1/4	2.19	1.62	1.50	0.88	0.41	0.28	0.06	0.25	6.50
*5/16	2.50	1.88	1.81	1.06	0.50	0.34	0.08	0.30	11.80
*3/8	2.88	2.12	2.12	1.12	0.63	0.41	0.11	0.39	21.60
7/16	3.25	2.38	2.38	1.25	0.72	0.47	0.12	0.45	34.70
*1/2-9/16	3.62	2.75	2.75	1.50	0.89	0.59	0.15	0.48	51.00
*5/8	4.25	3.25	3.12	1.75	1.00	0.66	0.16	0.53	75.70
*3/4	5.00	3.75	3.81	2.00	1.22	0.78	0.22	0.69	158.10
7/8	5.50	4.25	4.25	2.25	1.38	0.94	0.22	0.78	177.80
1	6.12	4.50	4.75	2.50	1.56	1.06	0.25	0.88	313.90
1-1/8-1-1/4	7.00	5.12	5.88	2.88	1.88	1.31	0.25	1.25	400.00
1-1/4-1-3/8	9.08	6.50	6.81	3.50	2.25	1.44	0.37	1.29	886.00
1-3/8-1-1/2	9.00	6.25	7.12	3.50	2.62	1.56	0.50	1.31	1294.00
1-5/8	11.25	8.00	8.12	4.00	3.00	1.72	0.50	1.38	1700.00
1-3/4	12.19	9.00	8.50	4.50	3.06	1.84	.50	1.50	1775.00
1-7/8-2	15.12	12.00	10.38	6.00	3.38	2.09	.50	1.69	2775.00
2-1/4	17.50	14.00	11.88	7.00	3.88	2.38	.62	1.82	3950.00

*SS-414 sizes available in stainless steel type 304.
