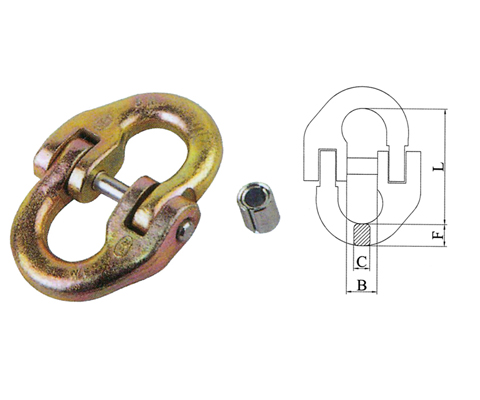

Product Name：G80 Connecting li
|
NOMINAL SIZE DIA(mm) |
CHAIN SIZE (mm) |
DIMENSIONS(mm) |
W.L.L. (tons.) |
WEIGHT (kgs.) |
|||
| B | C | F | L | ||||
| 5 | 5-8 | 12.7 | 6.5 | 7.0 | 36.0 | 0.80 | 0.05 |
| 6 | 6-8 | 16.0 | 6.8 | 7.2 | 43.0 | 1.10 | 0.09 |
| 7-8 | 7/8-8 | 19.2 | 9.0 | 10.0 | 54.0 | 2.00 | 0.18 |
| 10 | 10-8 | 25.0 | 11.0 | 12.0 | 77.0 | 3.15 | 0.35 |
| 13 | 13-8 | 30.0 | 15.5 | 15.5 | 85.0 | 5.40 | 0.68 |
| 16 | 16-8 | 36.0 | 18.5 | 18.5 | 103.0 | 8.00 | 1.19 |
| 18-20 | 18/20-8 | 44.0 | 22.0 | 22.0 | 116.0 | 12.50 | 1.71 |
| 22 | 22-8 | 49.0 | 26.5 | 26.5 | 138.0 | 15.00 | 2.71 |
| 26 | 26-8 | 60.0 | 31.5 | 31.5 | 146.0 | 21.20 | 4.22 |
| 32 | 32-8 | 68.9 | 37.0 | 37.0 | 191.0 | 31.50 | 8.53 |
