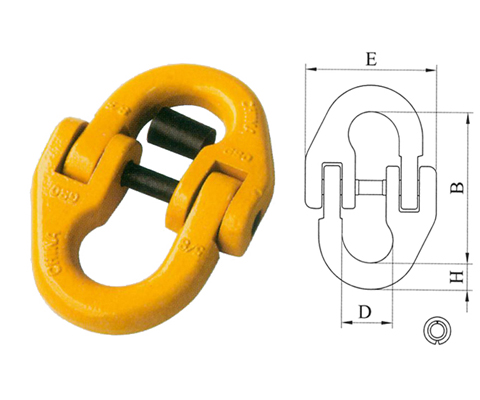

Product Name：G80 Connecting li
| CHAIN SIZE | DIMENSIONS(inch) |
W.L.L. (lbs.) |
WEIGHT (lbs.) |
||||
| (mm) | (inch) | B | D | E | H | ||
| 7 | 9/32( 1/4) | 1.85 | 0.68 | 1.81 | 0.35 | 3500 | 0.28 |
| 8 | 5/16 | 2.20 | 0.77 | 1.98 | 0.38 | 4500 | 0.55 |
| 10 | 3/8 | 2.60 | 0.94 | 2.56 | 0.52 | 7100 | 0.84 |
| 13 | 1/2 | 3.40 | 1.27 | 3.30 | 0.64 | 12000 | 1.60 |
| 16 | 5/8 | 4.13 | 1.48 | 3.65 | 0.75 | 18100 | 2.86 |
| 20 | 3/4 | 5.08 | 1.75 | 4.70 | 0.96 | 28300 | 5.00 |
| 22 | 7/8 | 5.47 | 2.18 | 5.63 | 1.06 | 34200 | 7.50 |
| 25 | 1 | 6.10 | 2.50 | 6.22 | 1.22 | 47700 | 11.03 |
| 32 | 1-1/4 | 7.99 | 2.76 | 8.12 | 1.50 | 72300 | 20.39 |
