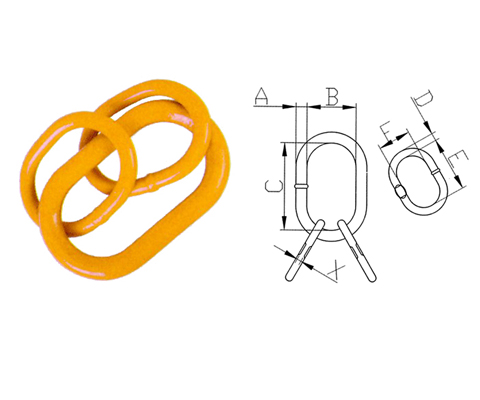

Product Name：G80 Welded Master li
|
SIZE (inch) |
DIMENSIONS(mm) |
W.L.L. (lbs.) |
WEIGHT (kgs) |
|||||||
| A | B | C | D | E | F | X | 4:1 | 5:1 | ||
| 1/2 | 14 | 59.9 | 100.1 | 12 | 85.1 | 39.9 | 6.1 | 5300 | 4300 | 0.60 |
| 5/8 | 18 | 88.9 | 160 | 14 | 100.1 | 59.9 | 7.6 | 7100 | 5700 | 1.66 |
| 3/4 | 20 | 88.9 | 160 | 14 | 100.1 | 59.9 | 7.6 | 11000 | 8800 | 1.82 |
| 7/8 | 22 | 100.1 | 180.1 | 18 | 150.1 | 70.1 | 8.4 | 17600 | 14100 | 2.61 |
| 1 | 28 | 140 | 270 | 22 | 160 | 89.9 | 13.5 | 26500 | 21200 | 7.40 |
| 1- 1/4 | 32 | 140 | 270 | 25 | 180.1 | 100.1 | 16.5 | 38400 | 30720 | 10.22 |
